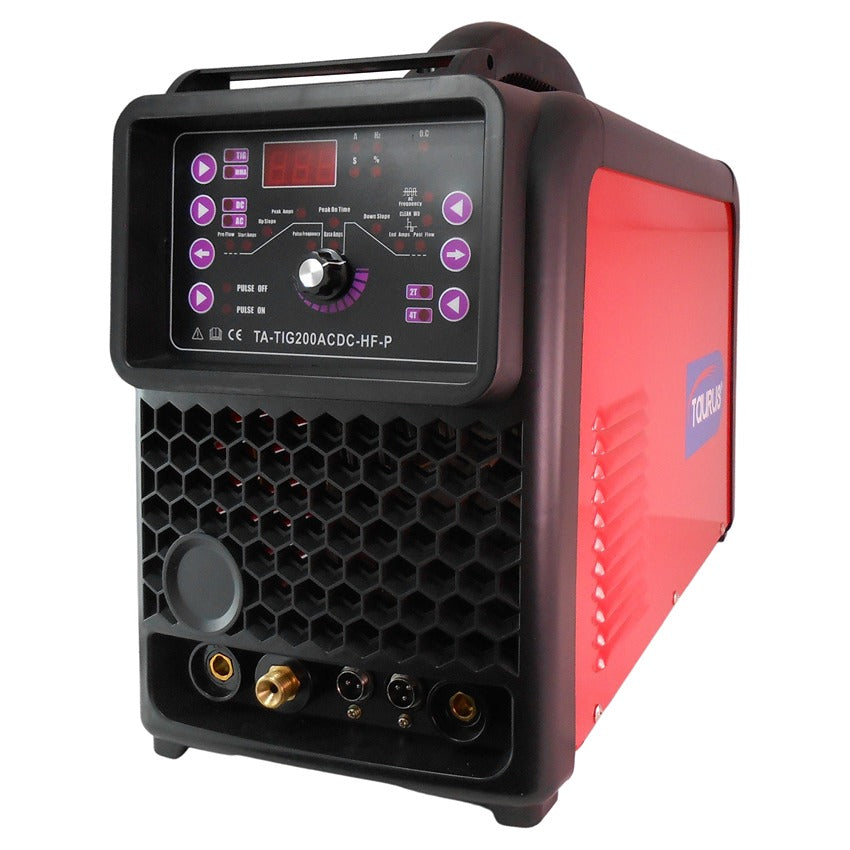

TAURUS TIG-AC/DC-200A PULSE WELDER - 220V

Technical Spec:

The Taurus TIG AC/DC 200A PULSE inverter is a robust, generator friendly
machine designed and manufactured for operation under
demanding industrial conditions. The advanced power input system
will detect and handle a voltage drop or a spike of up to 20%.

The two main built-in functions, pulse welds and high
frequency ignition, ensure professional ease of welding and high quality
welds. The pulse function facilitates control over the welding
process and prevents burn-through on the workpiece. The high
frequency ignition creates a very soft start arc as well as maximum
arc control. This obviates the need to touch the workpiece with the
tungsten electrode. Both functions have a great advantage when
welding thin material. The Taurus TIG AC/DC 200A PULSE inverter's
selection panel allows welding with either AC or DC current - in AC
mode for aluminium welding or in DC mode for all steel and steel
alloy materials.

SOME KEY FEATURES

• IGBT system.
• 20% Voltage fluctuation safeguard.
• Heavy duty.
• Soft, stable arc.
• High quality welds.
• LCD digital display.
• Pulse welding and high frequency ignition.

ACCESSORIES
• Earth clamp cable kit.
• Electrode holder cable kit.
• TIG torch.
• Argon flowmeter.

OPTIONAL EXTRA
• Foot control if AC welding is required (TA-FOOT-CONTROL).

SPECIFICATION                              DESCRIPTION
PRODUCT CODE                            TA-TIG200ACDC-HF-P
MODEL                                          TA-TIG200ACDC-HF-P
RATED POWER SUPPLY INPUT      220V±20% SINGLE PHASE
DUTY CYCLE                                  40°C @ 10 MINUTES 60% @ 200A 155A
OPEN CIRCUIT VOLTAGE               56V
WELDING CURRENT RANGE         5 - 200A
DIMENSIONS(mm)                        500 x 220 x 400mm

WEIGHT(kg)                                    12kg
