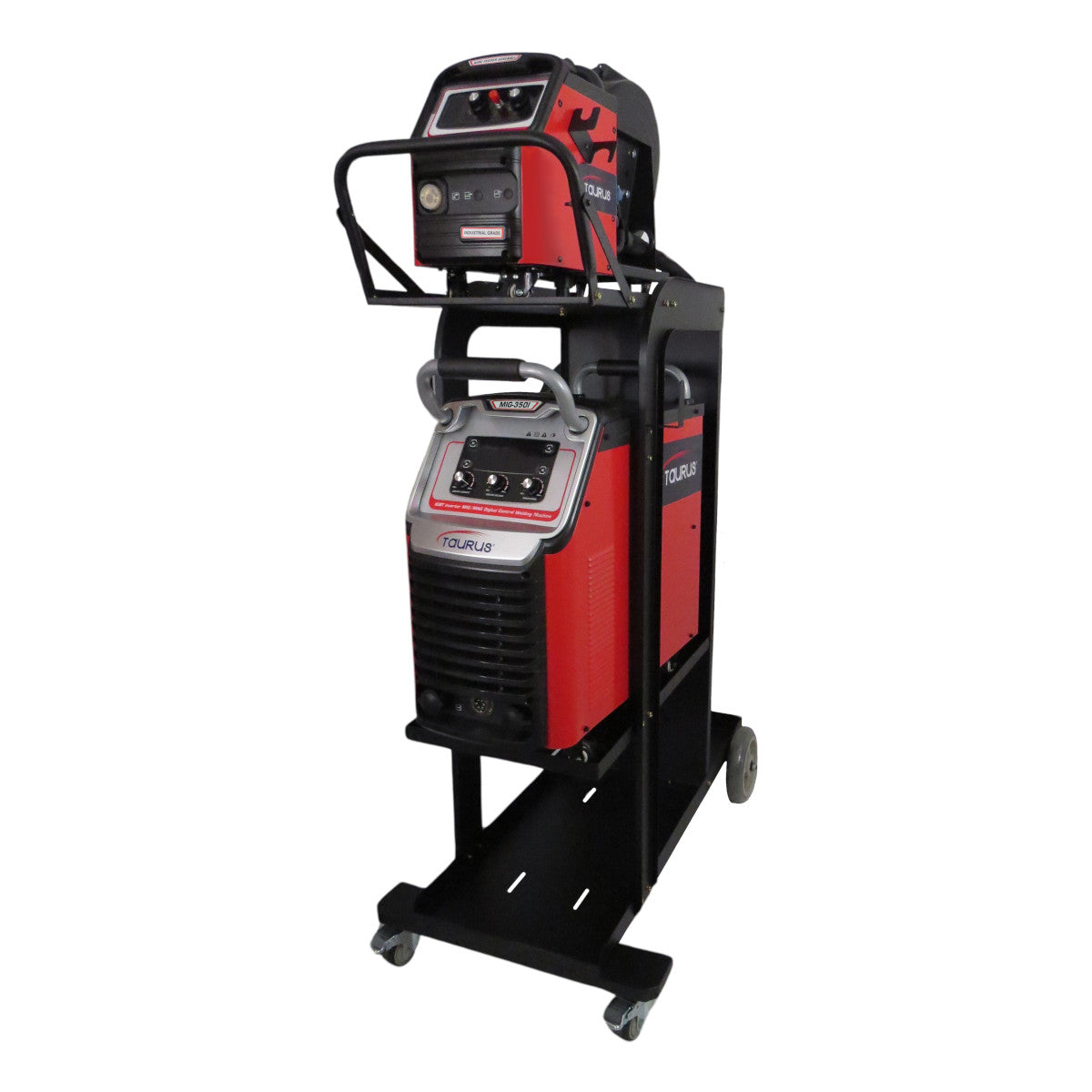

TAURUS MIG/MMA-350i WELDER WITH SEPERATE WIREFEEDER - 380V
TAURUS MIG/MMA-350i WELDER WITH SEPERATE WIREFEEDER - 380V
Prices are VAT incl.
Couldn't load pickup availability
Including Items:
• Earth clamp cable kit.
• MIG torch.
• Argon flowmeter
• Trolley
• Interconnection cable
OPTIONAL EXTRAS
• Water cooling unit
• Water cooled MIG gun
This Taurus MIG350I is a 380v, 500A MIG welding inverter machine. With it’s
high-power IGBT and advanced inverter technology, it has good dynamic
characteristics, stable arc, good welding quality and is easy to control. It’s a
high performance semi-automatic welding machine for CO2 and mixed gas
shielded welding.
The machine can weld low carbon steel, low alloy steel, stainless
steel, galvanized sheet, copper and other components, using Φ0.8-Φ1.6mm
diameter stainless steel welding wire, steel wire and other solid wire. The
advanced power input system will detect and handle a voltage drop or a
spike of up to 15%. This will not only safeguard the machine against damage
resulting from erratic power supply, but will also ensure smooth, uninterrupted
operation.
This Taurus MIG350I is widely used in industries such as electric power
construction, shipbuilding, machinery manufacturing, building construction,
fabrication and other industries. It has reasonable static characteristics and
good dynamic performance and they are manufactured in accordance with
IEC60974-1, Safety Requirements for Arc Welding Equipment.
SOME KEY FEATURES
• Precise digital output by digital CPU control system,
• All in one multiple welding functions allows for MIG gas welding, MIG flux
core welding, DC MMA welding and DC lift TIG welding.
• Easy to move, energy saving, high efficiency and duty cycle with no noise
from arc welding rectifier.
• The closed-loop control system ensures a more stable welding voltage in
the case of grid voltage fluctuation and the change of arc length
• An excellent arc self-regulation, and a stable welding process.
• Less spatter, high metal deposition rate, good welding bead sand less
deformation.
• With self-locking function, it can greatly reduce the welder's labour intensity
when welding large-scale and long welding seam.
• MMA function is designed to weld various electrodes like acid, alkaline,
stainless steel, cast iron, etc with excellent performance.
• Perfect protection circuit makes it safe, reliable and convenient for troubleshooting.
• The machine meets IP21S protection level to ensure its reliability in harsh
environment.
SPECIFICATION DESCRIPTION
PRODUCT CODE TA-MIG350I
MODEL MIG-350I
POWER SUPPLY VOLTAGE 380V±15% THREE PHASE
DUTY CYCLE 40°C @ 10 MINUTES 60% @ 350A
OPEN CIRCUIT VOLTAGE 67V
WELDING RANGE 60 TO 350A
WIRE DIAMETER 0.8 TO 1.6mm
PACKAGE DIMENSIONS(MM) 710 x 385 x 680mm
NET WEIGHT(KG) 18KG (PSU)
565 x 275 x 392mm 28KG (FEEDER)
