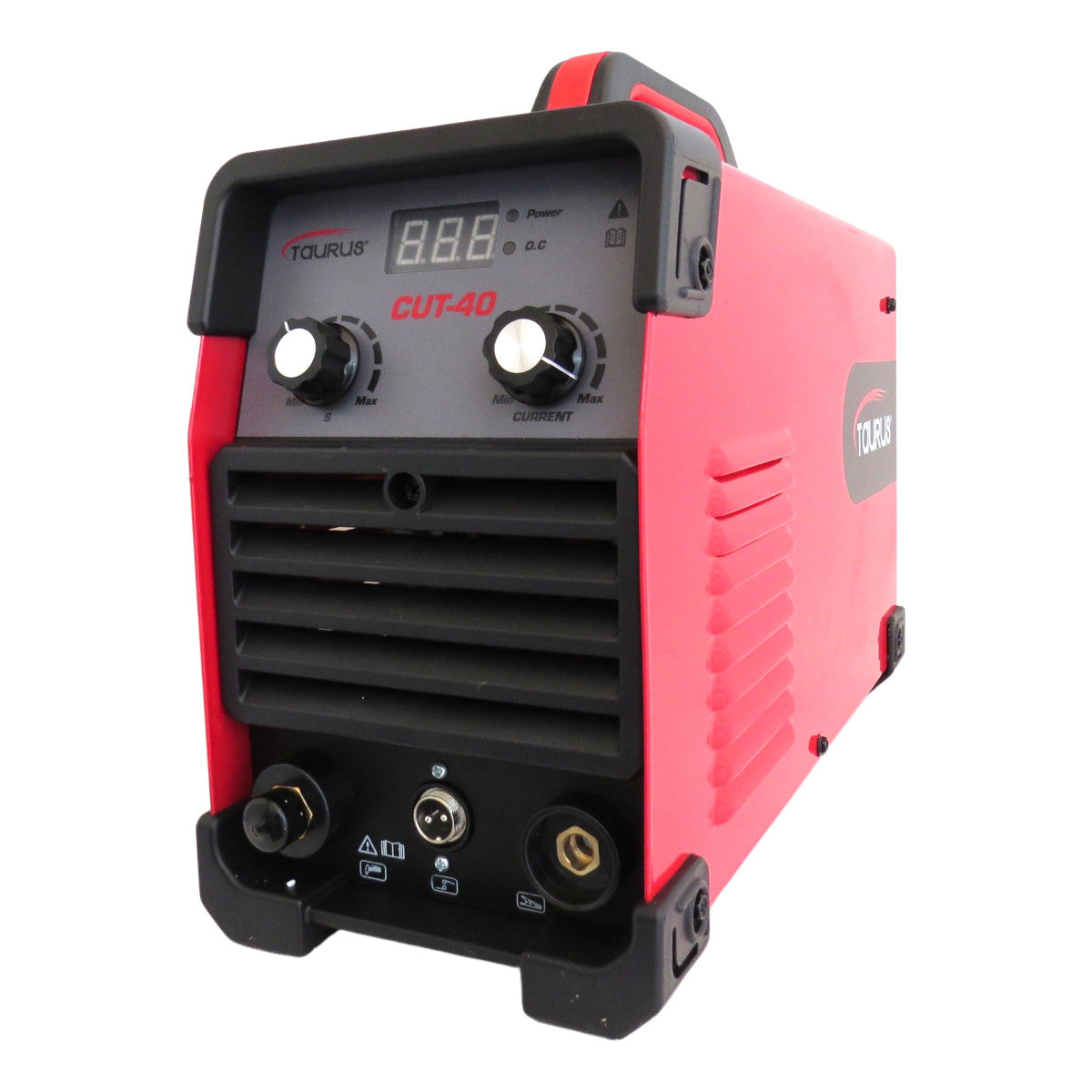

TAURUS CUT-40PA PLASMA CUTTER - 220V
TAURUS CUT-40PA PLASMA CUTTER - 220V
Prices are VAT incl.
Couldn't load pickup availability
Technical Spec
This Taurus CUT40PA is a 40A, 220v single phase air plasma cutting machine.
It produces a stronger, more concentrated and stable electric arc. The
temperature of the arc can reach a high ionization state, forming a powerful
plasma arc which allows metal to be cut quickly by plasma arc. The heat
affected zone is reduced as much as possible and the energy is used more
effectively giving a super smooth cutting surface. It can be used for cutting
various metal materials such as stainless steel, aluminium, copper, cast iron
and carbon steel. The advanced power input system will detect and handle
a voltage drop or a spike of up to 15%. This will not only safeguard the machine
against damage resulting from erratic power supply, but will also
ensure smooth, uninterrupted operation.
The Taurus CUT4PA features a fast cutting speed, narrow cutting seam,
clean cut, small heat affected zone, low deformation, simple operation and
outstanding energy saving effect. It's suitable for manufacturing, installation
and maintenance of various machinery and metal structures, cutting
thin plates, opening holes, patching, beveling, cutting pipes and other cutting
processes. It is widely used in aerial work, outdoor work, indoor and
outdoor decoration, shipyard steel plate, petrochemical equipment, construction
site and other industries. The Taurus plasma cutting machines are
manufactured in
SOME KEY FEATURES
• Small size, light weight, extended cutting time, easy to move and especially
suited for applications requiring mobility and working at elevated areas.
• Integrated filtered pressure regulator and water trap.
• Reliable overheat, over-current and over-voltage protection.
• Easy arc striking and stable arc allow easy arc control.
• Accurate preset current ensures a clean cut, energy-saving performance
on workpieces of differing thickness.
• Narrow cutting seam, clean cutting edge and no deformation.
• The IP21S grade ensures reliability even under harsh environmental conditions.
ACCESSORIES
• Earth clamp cable kit.
• P60(AG60) plasma torch.
Â
SPECIFICATION DESCRIPTION
PRODUCT CODEÂ Â Â Â Â Â Â Â Â Â Â TA-CUT40PA
MODELÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â CUT-40
POWER SUPPLY VOLTAGE    220V±15% SINGLE PHASE
DUTY CYCLE              40°C @ 10 MINUTES 60% @ 40A
OPEN CIRCUIT VOLTAGEÂ Â Â Â Â 270V
OUTPUT CURRENT RANGEÂ Â Â 15 TO 40A
MAX CUTTING THICKNESSÂ Â Â (MILD STEEL) 12mm
PACKAGE DIMENSIONS(MM)Â 422 x 156 x 275mm
NET WEIGHTÂ Â Â Â Â Â Â Â Â Â Â Â Â Â 8.13KG
