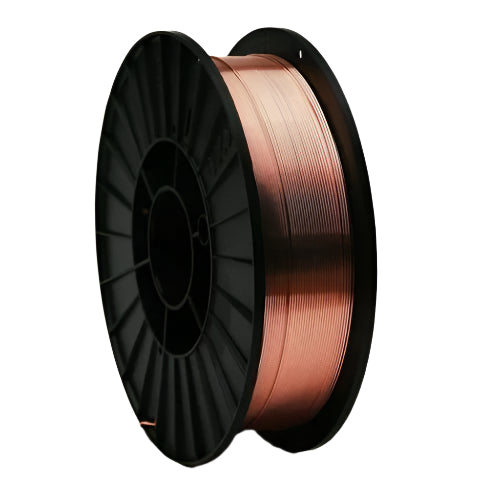

MIG WIRE - ER70S-6 MILD STEEL 5KG ROLLS
MIG WIRE - ER70S-6 MILD STEEL 5KG ROLLS
Regular price
R 409.34 ZAR
Regular price
R 0.00 ZAR
Sale price
R 409.34 ZAR
Unit price
R 0.00
/
per
Prices are VAT incl.
Couldn't load pickup availability
Technical Specs:
ER70S-6 is a carbon steel solid welding wire with gas shielding, which has excellent welding performance with smooth arc, low spatter level, good wire feeding behavior and optimal bead appearance. The product is applicable for all-position welding. The deposited metal has good mechanical properties. It is characterized by strong resistance to scale and oil stain on the surface of base metal and low porosity sensitivity.
Chemical composition of welding wire (%)
Item
|
C
|
Mn
|
Si
|
S
|
P
|
Ni
|
Cr
|
Mo
|
V
|
Cu
|
Example value | 0.077 | 1.54 | 0.88 | 0.011 | 0.012 | 0.011 | 0.020 | 0.008 | 0.001 | 0.14 |
Mechanical properties of deposited metal
Test item
|
Rm
(MPa) |
ReL/Rp0.2
(MPa) |
A
(%) |
KV2 (J)
-40℃ |
Example value | 555 | 450 | 29 | 77, 95, 83 |
Reference specification (DC+)
Specification of welding wire(mm)
|
Welding current(A)
|
CO2 gas flow(L/min)
|
Φ0.8 | 50~100 | 15 |
Φ1.0 | 50~220 | 15~20 |
Φ1.2 | 80~350 | 15~25 |
Φ1.6 | 170~550 | 20~25 |
